EQUUS 175N BL
The light basic concept of forestry skidder EQUUS 175N BL with front blade, rear shield and winch. EQUUS is the ideal choice for users, who are accustomed to classic type of work and prefer work only with the winch and blade. We offer a wide range of additional equipment for this model. Weight of skidder begins at 8.500 kg.
Meet the most efficient forestry skidder in its category, EQUUS 175N BL! Its main attributes are robustness and high working efficiency together with its rate of return. The machine is easy to operate and complies with the most demanding criteria of today's customers. It is equipped with a state-of-the-art hydrostat and a perfect cooling system. This high-perform forestry machine is capable of driving on roads to distances exceeding 100 km in a speed of 40 km/h. The lowest centre of gravity in its class makes this machine a perfect choice for work in the most demanding terrain.
Dimensions of the EQUUS 175N BL

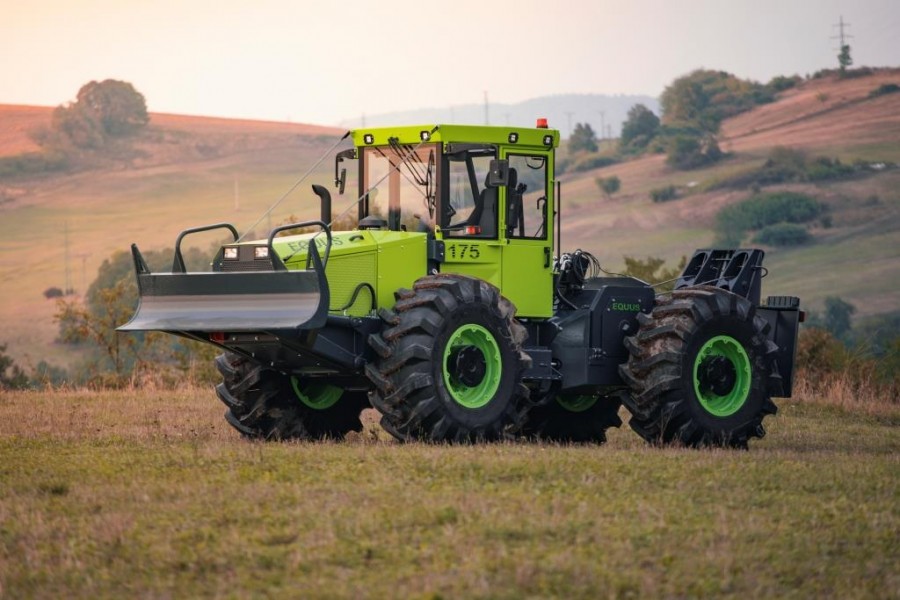

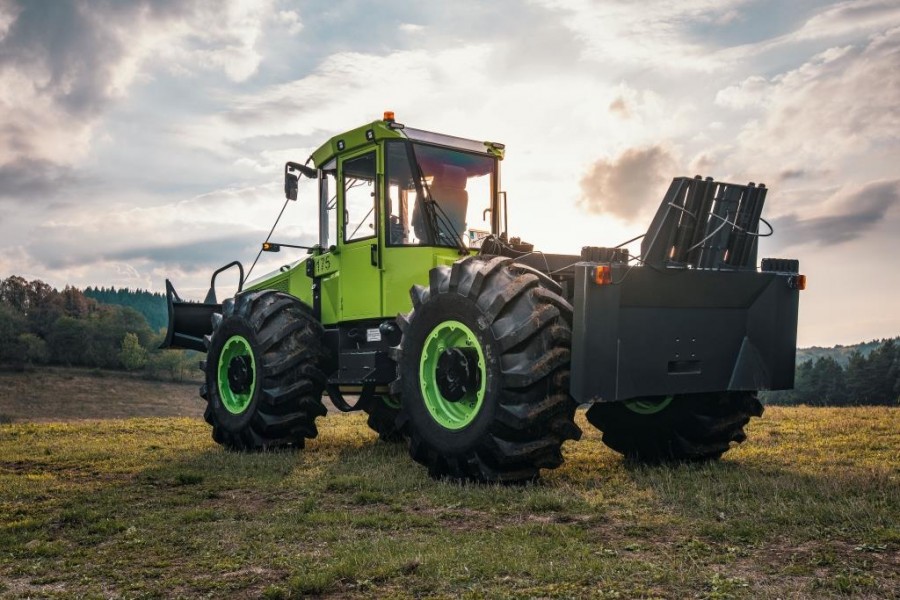

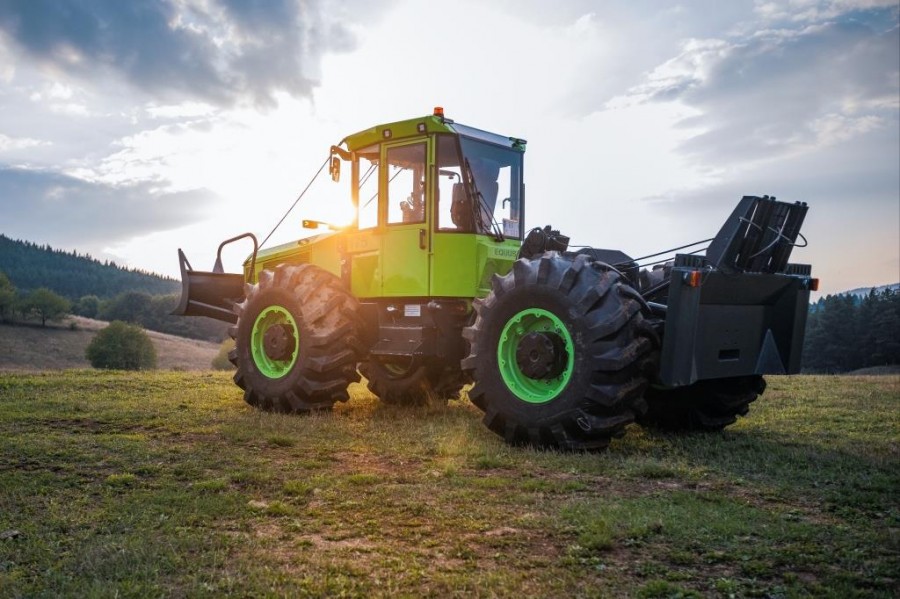

Photos EQUUS 175N BL
Technical specifications of the EQUUS 175N Basic
As one of the first forestry skidder manufacturers, EQUUS has installed the most advanced CUMMINS B45 engine that meets the requirements of the most demanding STAGE V emission class. With the power of 175 hp and the torque of 780 Nm, this direct-injection 4-cylinder engine delivers a performance comparable to larger and more expensive 6-cylinder engines, while being lighter, safer and more environmentally friendly.
Type: CUMMINS B45
Power: 129 kW @ 2200 rpm – 780 Nm @ 1500 rpm Stage V. At the moment the highest environmental standards and with certificates from producer of combustion engine.
Specifications: diesel, 4-stroke with direct fuel injection (Electronic Common Rail)
Nr.of cylinders: 4
Volume of cylinders: 4,5L
Fuel cleaning: water separator, fuel filter
Lubrication: pressurized, circulating with wet oil pan and oil filter
Cooling: coolant circulation through the water pump, termoregulator's valve
Placed: in connection with hydrogenerators
Handling: pedal with potentiometer
We have used a hydraulic motor concept with enlarged volume of 300 ccm and 45° swinging plate. The higher volume of the hydraulic motor decreases its maximum speed, the swinging plate increases its effectiveness. The 1st gear is suitable for the speed of 0–18 km per hour and for dragging at optimum engine speed, which is the most important contribution to transmission efficiency. The 2nd gear allows the skidder to travel easily over long distances without stopping at the speed of up to 40 km per hour. Hydraulics and certificate are both supplied by DANFOSS company.
Gearbox: Hydrostatic transmission with 3 automatic modes and 2 mechanical transmissions (turtle/rabbit) in a timing case, maximum speed of 40 km per hour forwards and backwards. The timing case allows for the disconnection of the rear axle 4x4 / 4x2.
Characteristics: The hydrostat is a low‑rpm and low‑pressure system. By increasing the volume of the hydraulic motor and decreasing the volume of the transmission, we achieved the optimum efficiency. With our skidder, you will be able to use roads without any fears of engine or hydraulic system overheating, with the speed of up to 40 km per hour! The behaviour of the hydrostatic transmission does not differ from a standard transmission – it
does not slow down under load.
The cabin, which is an in-house production by EQUUS, offers the highest safety parameters. Not only does it meet the basic limits of the OPS, FOPS and ROPS standards, it even exceeds them. The cabin's position is as low as possible. It thus offers the most convenient way to get in and out of the cabin. Lighting is intelligently installed inside the body and therefore it allows, together with the use of high-quality glass, to eliminate the use of grille protectors. They might be fitted, however, if a customer requests so. The cabin has two doors and therefore it offers the possibility to mount on the skidder from both sides. The rear view is improved – there is a new glass panel in the roof of the cabin for better view when working with the hydraulic arm.
Characterictics: EQUUS (FOPS, ROPS, OPS) tilting safety cabin is equipped with Plastrans safety glass (with certificate A/M), suspension, two doors and a 315° rotating workstation (seat). The cabin complies with the strictest safety standards requiring the resistance of the cab to roll-over and breakage.
Equipment: Controlling – steering wheel with 2 joystics, Radio MP3 / USB, electricity 24V, 4 working lights, heating and the sun visor.
Type: NAF STT
- Rigid axles with wet multi-plate brakes and handbrake for all four wheels – 14T.
Material and design: S690QL - high-strength steel 700 N / mm2,
Frame construction: When using tyres 23.1-26 (600mm wide) is the max. width 2450 mm - enables the machine to be loaded and transported easily with a conventional truck.
Combination of axial bearing and vertical pin for oscillation the frame by 15 ° and bending the frame by 45 °.
The front share and rear shield have a width of 2000 mm.
Winch with spur gear in the gearbox offers 2 drums with large rope capacity.
In the standard version we offer a pulling force of 2 x 8 t.
Speed: 0.65 m / s
Rope capacity: max. 2x 80 m, Ø14 mm
Video presentation of the EQUUS 175N Basic
540/70 - 30 ALLIANCE FOREST
23.1 - 26 ALLIANCE FOREST
23.1 - 26 NOKIAN FOREST
28L - 26 ALLIANCE FOREST
28L - 26 NOKIAN FOREST
EQUUS chains green line, (made by RUD)
EQUUS TA14 (mud + rocks) 14 mm 23,1 – 26
EQUUS TA14 (mud + rocks) 14 mm 540/70 x 30,5
EQUUS TA16 (mud + rocks) 16 mm 23,1 – 26
EQUUS TA16 (mud + rocks) 16 mm 540/70 x 30,5
EQUUS BD20 - 16 (mud) 16 mm 23,1 – 26
Winding speed 2-stages 1,35 m/s – 0,65 m/s
Towing power of the winch up to 2x10 t
Steel rolled ropes 2x 80 m, Ø14 mm
Steel rolled ropes 2x 115 m, Ø14 mm*
Choker chains 2x 2,5m and sliding hangers 2x 3 pcs
*after consultation, there is a possibility to order also another rope dimensions
Remote control B&B Telenot
- for winch
- for winch and drive
Teeth (grap) at front blade
Tool boxes at front blade
Chain saw holder
Colour changing (except the frames, front blade and rear shield)
In case you have not found the equipment you are looking for in the list, take a look at our EQUUS 175N BH or do not hesitate to contact us!
