EQUUS 175N forestry tractor production program
Offer of EQUUS forestry tractors

Do you need a machine that can handle, cut and transport timber in bulk and in short periods of time? Meet the most efficient forestry skidder in its category, EQUUS 175N! Its main attributes are robustness and high working efficiency together with its rate of return. The skidder is easy to operate and complies with the most demanding criteria of today's customers. It is equipped with a state-of-the-art hydrostat and a perfect cooling system. This heavy duty forestry machine is capable of driving on roads to distances exceeding 100 km in a speed of 40 km per hour. The lowest centre of gravity in its class makes this machine a perfect choice for work in the most demanding terrain.
We are among the first manufacturers who use the state-of-the-art CUMMINS STAGE V class combustion engines. We have increased the transmission efficiency and improved the logic of the entire machine, resulting in an overall savings of 20–30 % of fuel per 1 cubic meter of timber. This means not only fuel savings and a reduction in emissions, but also a longer service life, better price/performance ratio, higher profit per 1 cubic meter and therefore the highest added value for the user.
Service Life

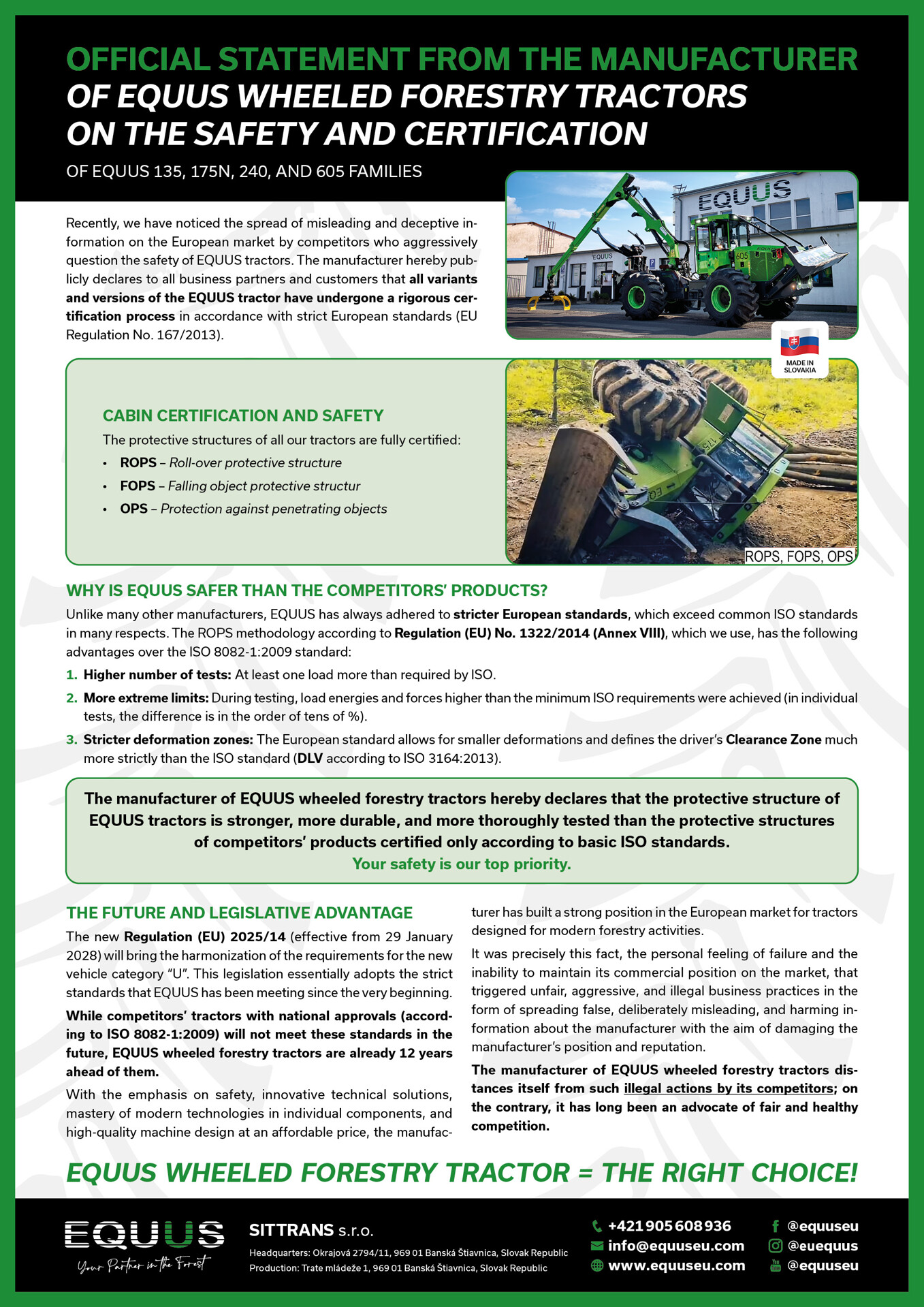

EQUUS 175 wheeled forestry skidder is characterized by robustness, economy and reliability. The frame is made of high-strength high-quality steel, which guarantees a long service life and a low weight of the machine, together with a low fuel consumption. The cabin meets the strictest safety parameters of protection against roll-over and breakage (ROPS, FOPS, OPS). Axles made by a renowned German manufacturer are oversized for much higher loads than commonly used axles. The combination of proprietary hydrostatic transmission and cooling guarantees a consistently high performance over a long period. We recommend to use additional equipment by renowned and proven suppliers.
Repairs and Maintenance
EQUUS 175N forestry skidder is characterized by reliability, simplicity and affordable price. These are the criteria we have set when designing the EQUUS forestry machine. We have avoided complicated control units. Engine error readers, however, allow for accurate and fast diagnostics of the engine and hydrostat. Hydraulic cylinders are dimensionally identical, which enables their quick and inexpensive replacement on the entire skidder. The engine part, working hydraulics and all other components are mounted in the frame structure in a manner allowing an easy access and quick and cheapest possible repairs. Conditions for both warranty and post-warranty repairs are set up affordably – we provide the most optimum conditions while maintaining the highest possible warranty. Our dedicated service team will always be glad to help you..
-
EQUUS 175N BL
The light basic version of the EQUUS 175N forestry skidder with a front blade, rear shield and winch. It is the ideal choice for users who are accustomed to the classic manner of working and are comfortable with working only with a winch and a blade. We offer a wide range of additional equipment for this model. The weight of the machine is from 8,500 kg.
-
EQUUS 175N BH
The heavy basic version of the EQUUS 175N forestry skidder with a front blade, rear shield and winch. It is the ideal choice for users who are accustomed to the classic manner of working and are comfortable with working only with a winch and a blade. We offer a wide range of additional equipment for this model. The weight of the machine is from 10,000 kg.
-
EQUUS 175N UN
EQUUS 175N UN is a version of the EQUUS 175N BH + the EQUUS 120 hydraulic arm with a grapple (size 0.35 as standard) and the clambunk with automatic clamping. The grapple may also be in the version with a saw. Hydraulic arms are available in the following lengths: 6.1 m, 7.5 m (double telescope) and 9.5 m (double telescope). This is the best-selling version.
-
EQUUS 175N UH
EQUUS 175N UH is the version EQUUS 175N BH + the EQUUS 120 hydraulic arm with an installed harvester head. Hydraulic arms are available in the following lengths: 6.1 m, 7.5 m (double telescope) and 9.5 m (double telescope). This version is suitable for harvesting or finishing works after harvesting of wood. The weight of the machine starts from ca. 13 tonnes (depending on the head type and equipment).
-
EQUUS 175N 6WDC
First 6-wheel vehicle model of EQUUS offers combined utilization. Except loading and carrying out of timber bulk, there is also a possibility for the customers to buy harvester head. Therefore it's possible to produce, load and transport timber with one machine at the same time.
-
EQUUS 175N UK
Universal machine with UK label is offering general usability for its customers. The skidder is interesting mainly due to rugged grab with maximal opening more as 2,6 m. Therefore, the skidder is
able to manipulate not only with huge amount of timber of smaller diameter, but also to manipulate with huge and robust woods. -
PTO
Do you want a forestry skidder while you also need to mulch or do other work using the output shaft and you do not want to buy another single-purpose machine? We offer a great solution: combine the most powerful hydrostatic drive and a unique transmission and nothing will prevent you from doing even the most difficult work.
-
DIFFERENT USES
Do you need to temporarily use the machine for less common purposes, e.g. for a construction, landscaping work, etc.? You can do this easily: with a robust quick-coupling system you can use the EQUUS hydraulic arm with a majority of the most common forestry grapples, dippers, twig holders, mulching heads, trimming heads, grapples with saws, etc.
