6 WHEELS.
MORE TRACTION.
EVEN MORE POWER.

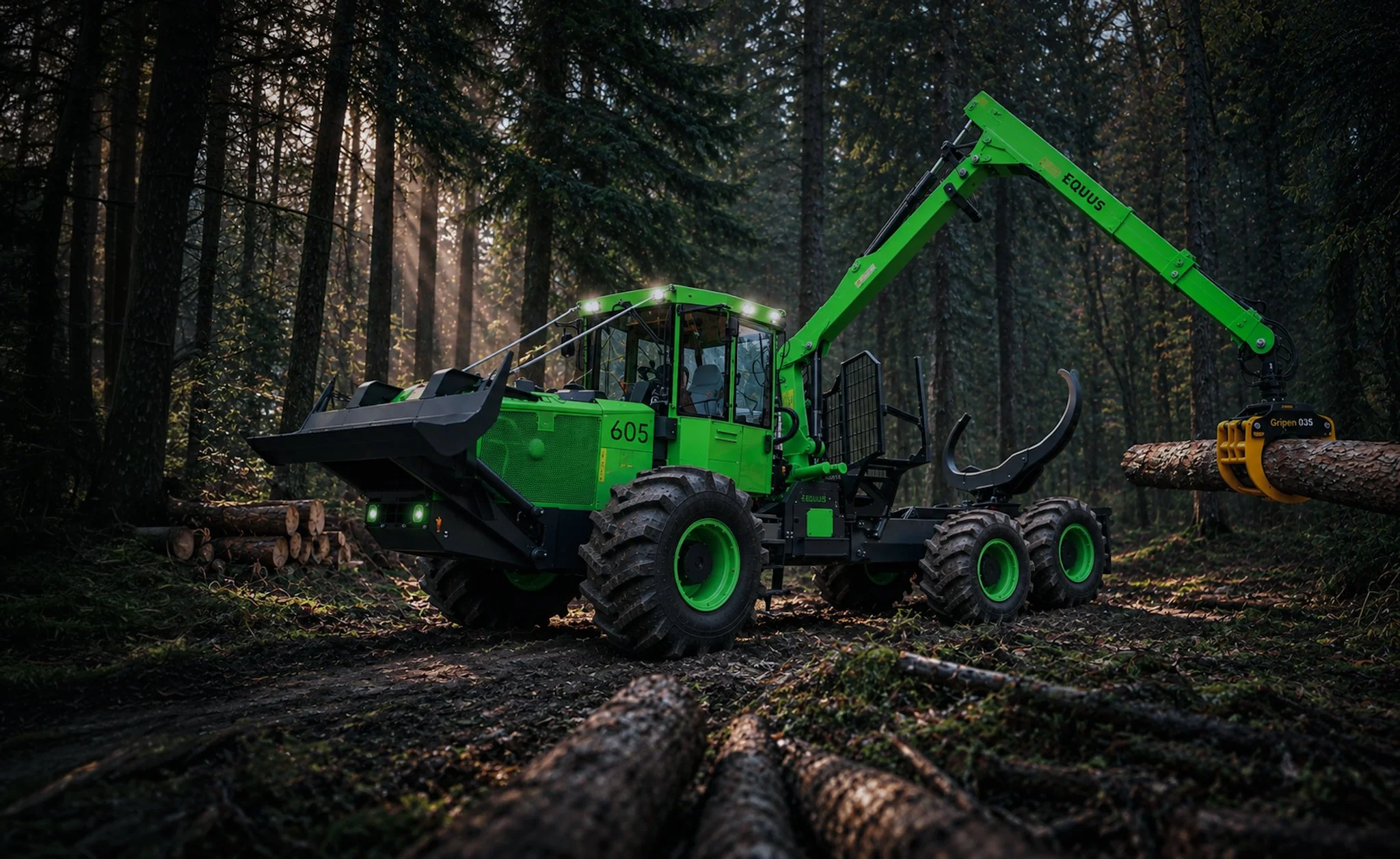

EQUUS 605 6WD

The EQUUS 605 6WD builds on the proven platform of the EQUUS 175 6WDC, combining its exceptional 6-wheel traction, versatility and terrain capability with significantly greater engine performance.

Powered by a 6.7-litre 6-cylinder CUMMINS B6.7 Stage V engine, it is designed for operators who demand additional power and torque for the most demanding forestry operations.

16 t

WINCH PULLING FORCE

9,5 m

CRANE REACH

175 hp

ENGINE POWER

VERSATILITY WITHOUT COMPROMISE

The EQUUS 605 6WD retains the proven design and working capabilities of the 175 6WD, but adds a significantly more powerful 6.7-litre CUMMINS B6.7 engine.

The increased power and torque provide greater capacity for demanding skidding and timber handling operations.

POWER & 6-WHEEL TRACTION

Six driven wheels provide exceptional traction, stability and terrain capability.

Combined with the powerful CUMMINS engine, the EQUUS 605 6WD delivers the pulling power needed to confidently operate in steep, uneven and challenging forest terrain.

BUILT AROUND THE OPERATOR

The elevated cab provides the operator with an excellent view of the rear working area, improving visibility when handling and transporting timber.

Combined with the machine's high traction and stable 6-wheel configuration, it gives the operator greater control, confidence and precision throughout the working cycle.

Key features

BUILT TO LAST.

EQUUS forestry tractors are engineered for long service life, reliability and efficient operation. The frame is manufactured from high-strength steel, combining exceptional durability with a low machine weight and efficient fuel consumption.

The cabin is designed to meet demanding ROPS, FOPS and OPS safety requirements, while oversized axles from a renowned German manufacturer NAF provide additional capacity for heavy loads.

A proprietary hydrostatic transmission and cooling system ensure consistent performance even under demanding operating conditions. We use proven components from established suppliers to ensure reliability throughout the machine's service life.

EASY TO SERVICE.

EQUUS tractors are designed with simplicity, reliability and easy maintenance in mind. By avoiding unnecessary complexity and using proven components, we make diagnostics, servicing and repairs faster and more cost-effective.

Engine and hydrostatic system diagnostics enable quick and accurate fault identification, while standardized hydraulic cylinders simplify replacement and reduce maintenance costs.

Major components, including the engine, working hydraulics and drivetrain, are positioned within the frame for easy access and efficient servicing. Combined with dedicated technical support and favorable warranty and post-warranty service conditions, this helps minimise downtime and operating costs.

Configurations - Skidder

  • EQUUS 605 6WD-U Skidder

    Wheelbase:
    4011 mm
    Engine:
    Cummins 4,5 l, Stage V, 129 kW / 175 hp and 780 Nm

    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

    ☑️ Hydraulic crane

    ☑️ Clambunk

  • EQUUS 605 6WD-UH Skidder

    Wheelbase:
    4011 mm
    Engine:
    Cummins 4,5 l, Stage V, 129 kW / 175 hp and 780 Nm

    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

    ☑️ Hydraulic crane

    ☑️ Clambunk

    ☑️ Harvester head

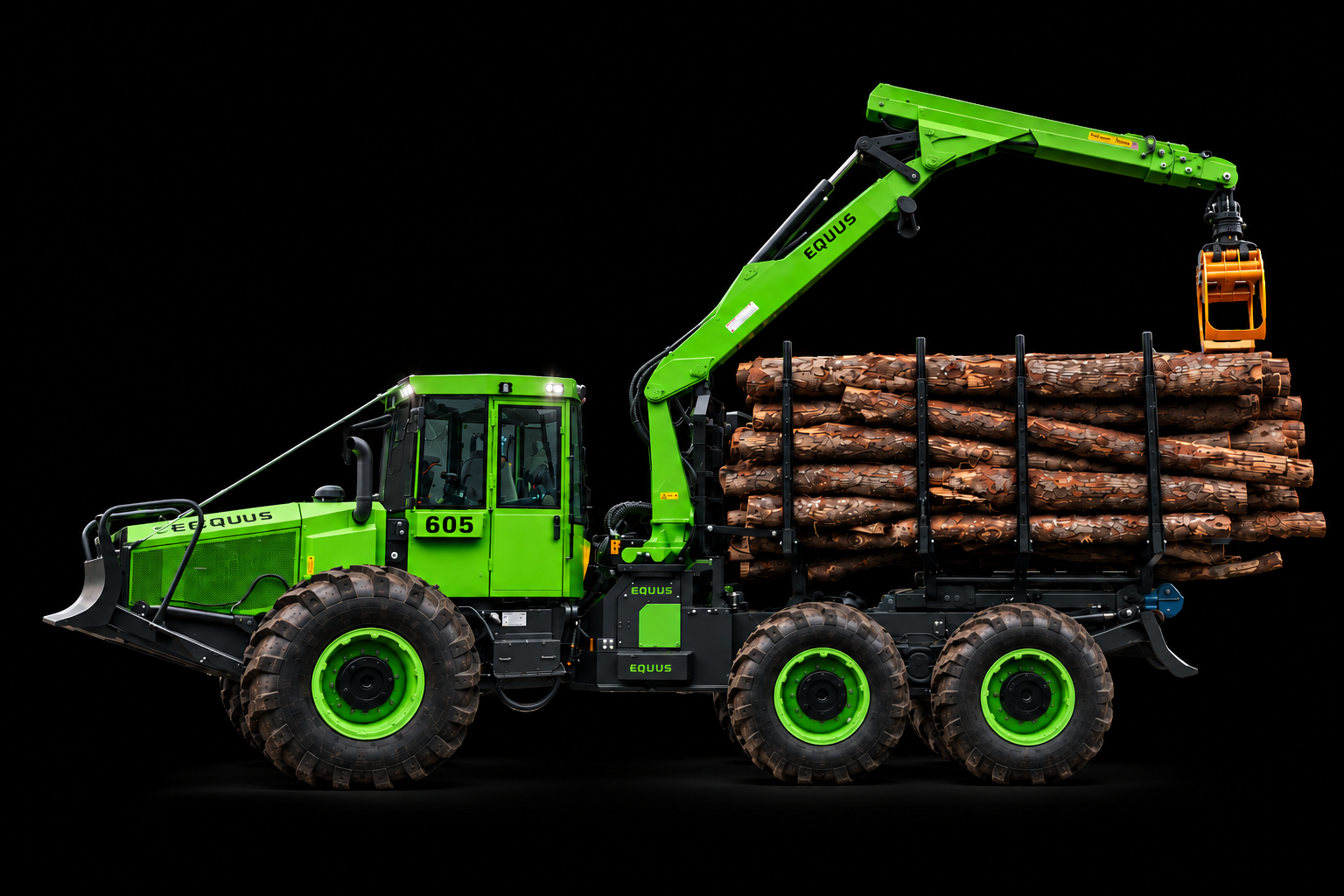

Configurations - Combi (Skidder + Forwarder)

  • EQUUS 605 6WDC-S Combi Skidder+Forwarder

    Wheelbase:
    5064 mm
    Engine:
    Cummins 4,5 l, Stage V, 129 kW / 175 hp and 780 Nm

    Suitable for transporting 4 m timber lengths.

    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

    ☑️ Hydraulic crane

    ☑️ Clambunk

    ☑️ Harvester head - optional

  • EQUUS 605 6WDC-L Combi Skidder+Forwarder

    Wheelbase:
    5564 mm
    Engine:
    Cummins 4,5 l, Stage V, 129 kW / 175 hp and 780 Nm

    Suitable for transporting 4 to 5-m timber lengths.

    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

    ☑️ Hydraulic crane

    ☑️ Clambunk

    ☑️ Harvester head - optional

  • EQUUS 605 6WDC-T Combi Skidder+Forwarder

    Wheelbase:
    5817 mm
    Engine:
    Cummins 4,5 l, Stage V, 129 kW / 175 hp and 780 Nm

    Suitable for transporting 5 to 6 m timber lengths.

    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

    ☑️ Hydraulic crane

    ☑️ Clambunk

    ☑️ Harvester head - optional

  • EQUUS 605 6WDC-X Combi Skidder+Forwarder

    Wheelbase:
    6134 mm
    Engine:
    Cummins 4,5 l, Stage V, 129 kW / 175 hp and 780 Nm

    Suitable for transporting timber lengths over 6 m.

    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

    ☑️ Hydraulic crane

    ☑️ Clambunk

    ☑️ Harvester head - optional

Full Technical Specifications

  • The CUMMINS B6.7 Stage V is engineered to deliver high torque at lower, fuel-efficient engine speeds, providing strong pulling power exactly where demanding forestry work requires it. Its Cummins-designed turbocharger delivers rapid engine response and high performance, helping achieve faster working cycles.

    More power does not have to mean higher fuel consumption. The engine's efficient design helps deliver higher performance with excellent fuel economy, while the EGR-free architecture reduces system complexity, improves reliability and lowers cooling system requirements.

    CUMMINS B6.7 STAGE V

    • Engine: 6-cylinder

    • Max. power: 172 kW (230 hp) @ 2,000 rpm

    • Optional: 210 kW (280 hp) @ 1,900 rpm

    • Max. torque: 1,044 Nm @ 1,500 rpm

    • Optional: 1,288 Nm @ 1,500 rpm

    • Fuel tank: 210 l

    • AdBlue tank: 37 l

    • Cooling fan: Fan Drive

    More torque. More power. Lower engine speeds.

  • The front and rear frames are fully welded from S690QL high-strength steel, providing exceptional structural rigidity, durability and long service life.

    The tractor consists of two independent frames connected by vertical articulation pins and an axial bearing. The articulation system allows 45° frame articulation and 15° oscillation, enabling the machine to follow uneven terrain while maintaining stability and traction.

    Two hydraulic cylinders provide frame locking, allowing the articulation to be securely locked when required.

  • The Load Sensing hydraulic system is powered by an axial piston pump with a displacement of 165 cm³/rev., delivering up to 264 l/min at 1,600 rpm.

    The system uses high-quality Danfoss hydraulic components and Parker hydraulic hoses with ORFS fittings, ensuring high reliability, durability and easy system accessibility.

    HYDRAULIC SPECIFICATIONS

    System: Load Sensing
    Pump: Axial piston pump
    Displacement: 165 cm³/rev.
    Maximum flow: 264 l/min @ 1,600 rpm
    Hydraulic tank capacity: 65 l
    Working pressure: 230 / 350 bar
    Hydraulic components: Danfoss
    Hydraulic hoses: Parker with ORFS fittings

  • The EQUUS hydraulic arms are developed and manufactured in-house for the most demanding forestry conditions. Their robust construction is designed for reliable timber handling and dragging, while the focus on durability, easy maintenance and service ensures long-term performance.

    Featuring a double telescope and 9.5 m reach, the hydraulic arm offers excellent working range and flexibility. Lifting torque is available in 120 kNm or 140 kNm configurations, while the optional floating position allows the arm to follow the terrain when dragging timber.

    The standard configuration includes a rotator, link and Gripen 035 grapple, as well as a trunk support and LED work light for illuminating the grapple. Various grapple types and an optional double-brake link are available on request, together with additional LED lights mounted on both sides of the arm.

    Every hydraulic arm function can be individually configured — including movement speed, start and stop behaviour and joystick sensitivity — allowing the system to be precisely adapted to the operator's preferences and working conditions.

  • The folding rear shield is manufactured from high-strength material and designed for demanding forestry operations. Its upper edge can be equipped with choker attachment points or a curved, toothed surface for secure timber support.

    The rear shield features heavy-duty spherical rope pulleys. An optional configuration includes an independently lifting shield that raises the pulleys up to 2 m, improving cable routing and winching performance.

    When raised, the lower edge of the shield maintains excellent ground clearance and a generous approach angle, allowing the tractor to reverse safely and efficiently on steep slopes.

    Standard shield width: 2,200 mm

    REAR SHIELD OPTIONS

    • Standard folding rear shield

    • Rear shield with independently height-adjustable pulley section

  • The EQUUS hydraulic clambunk is an in-house designed attachment for the rear shield. Hydraulically operated jaws securely hold timber during chokerless skidding, serving as an integrated load carrier.

    The clambunk features an automatic jaw pressure function as standard, continuously maintaining a firm grip on the timber during skidding.

    Available with a 0.8 m² or 1.2 m² loading area, in either a fixed or quick-release configuration for fast attachment and removal.

  • The EQUUS hydro-mechanical transmission combines a high-displacement single hydraulic motor with 45° swash-plate technology, delivering high efficiency and economical operation during demanding forestry work.

    The hydrostatic drive provides strong dynamic braking, reducing the need to use the service brakes during operation.

    The system is complemented by a NAF two-speed mechanical transfer gearbox with selectable rear-axle disengagement, allowing 4×4 / 4×2 operation and efficient road transport.

    The EQUUS hydrostatic transmission delivers demonstrably higher efficiency at speeds up to 18 km/h compared with competing two-motor hydrostatic systems.

  • The front and rear axles are fixed NAF planetary axles, engineered for demanding forestry applications.

    Both axles feature 100% mechanical differential locks, with separate locking of the front and rear differentials for maximum traction in challenging terrain.

    Proven by extensive field experience, NAF axles are recognised for their exceptional durability, reliability and performance in this power class.

  • The EQUUS in-house manufactured safety cabin is designed to provide maximum operator protection. Unlike conventional solutions, EQUUS cabins are tested in the T1a category, requiring up to 75% more demanding ROPS, FOPS and OPS testing conditions.

    The sound-insulated, forward-tilting cabin provides easy access to service components from both sides of the tractor. Tinted safety glass with 20% solar reflection reduces glare and improves operator comfort.

    An ergonomic layout, excellent all-round visibility, low entry height and doors on both sides ensure comfortable and efficient operation without compromising the tractor's ground clearance.

    Standard equipment includes Webasto heating and air conditioning, interior lighting, Bluetooth hands-free radio and a mechanically suspended seat. An air-suspended seat with heating, ventilation and adjustable lumbar support is available as an option.

    The 315° electrically rotating operator station, with braking in every position and integrated accelerator and brake pedals, provides excellent visibility and precise control in all working positions.

  • EQUUS 2BN WINCH

    The EQUUS 2BN twin-drum winch is manufactured in-house and features a spur-gear transmission integrated into the gearbox, providing high efficiency, durability and reliability in demanding forestry applications.

    Its robust and simple design, combined with high-quality materials, ensures long service life with minimal maintenance requirements. The winch is powered by a Danfoss variable-displacement hydraulic motor, which automatically adjusts its output to optimise pulling performance and operating efficiency.

    WINCH SPECIFICATIONS

    Type
    Twin-drum winch with spur-gear transmission integrated into the gearbox

    Pulling force
    2 × 12 t, up to 16 t

    Winding speed
    Two-speed, up to 2.4 m/s

    Drum capacity
    2 × 120 m or 2 × 150 m

    Cable diameter
    Ø14 mm

    OPTIONAL EQUIPMENT

    Hydraulic cable pay-out uses hydraulic motors to drive rollers that smoothly feed the cable from the drums, making the handling of heavy steel cable significantly easier.

    The optional HAFO auxiliary winch uses a lightweight nylon rope to pull the main steel cable towards the timber. The nylon rope can have a total length of up to 350 m.

    Additional functions include soft-start winding, controlled winding run-out and adjustable winding and unwinding speed.

    A cable pressure roller can also be integrated into the winch drum. It guides the cable into regular layers during winding, helping to reduce cable wear and extend its service life.

  • The folding front blade features a reinforced lower edge and integrated anti-rollover teeth to prevent logs from rolling over. Its high lifting range provides a generous approach angle, offering a significant advantage when descending steep slopes.

    Several blade types and widths are available. Optional equipment includes toolboxes, timber-gripping tines and increased lifting capacity up to 6 tonnes.

    A special grading blade is also available on request. It can be hydraulically tilted around its horizontal axis using two hydraulic cylinders, allowing the blade angle to be adapted to the terrain.

    The front blade is equipped as standard with a chainsaw holder.

    Standard blade width: 2,200 mm

    FRONT BLADE OPTIONS

    • Folding forestry blade

    • Grading blade

    • Different blade widths and configurations

  • The HBC remote control is a practical and intuitive solution, particularly suited to demanding forestry operations.

    It provides remote access to all winch functions, rear shield operation, engine speed control and engine START/STOP, allowing the operator to control the tractor and winch functions safely and efficiently from outside the cabin.
