STRONGER ENGINE. MORE PERFORMANCE.

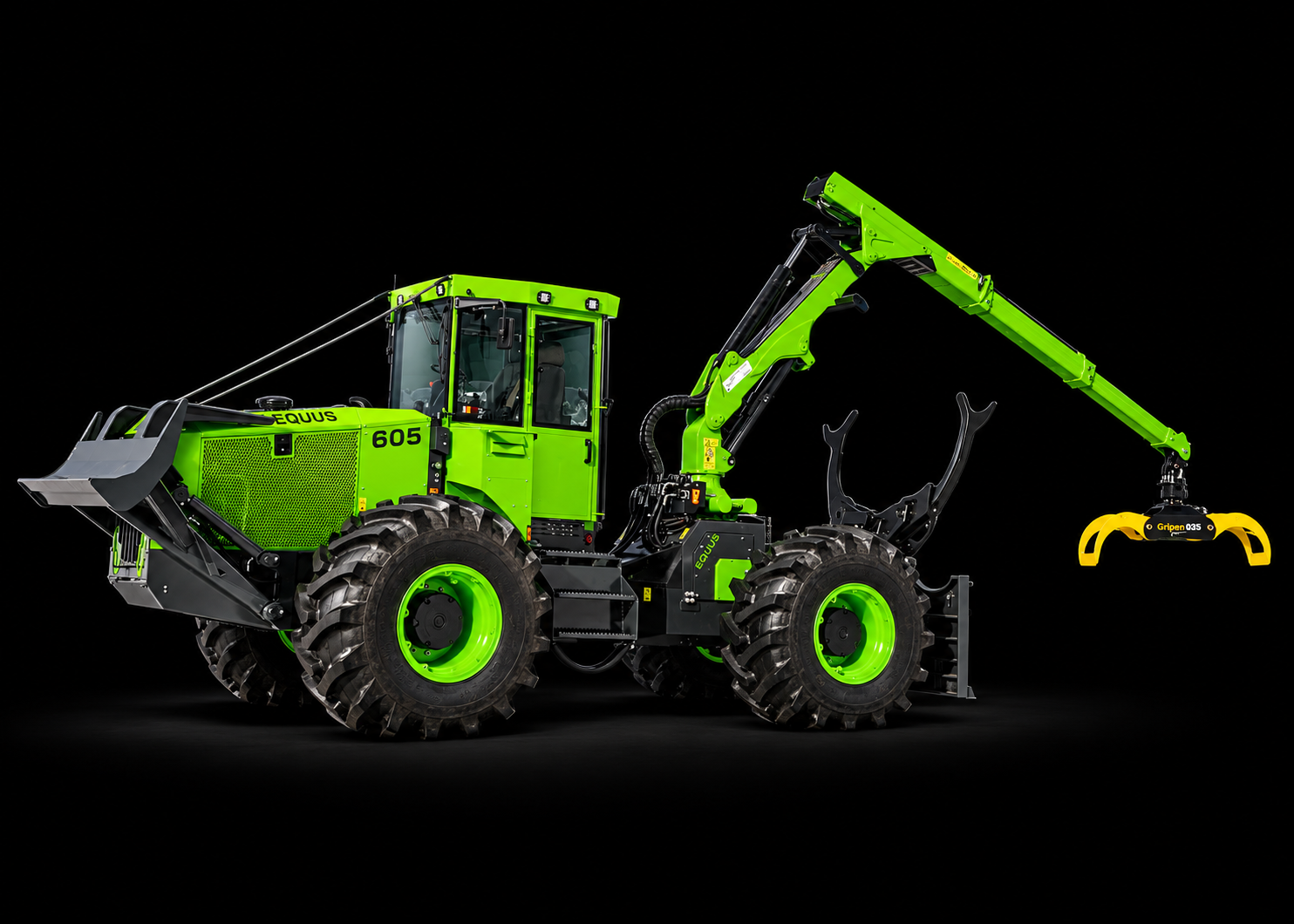

EQUUS 605

The EQUUS 605 is the largest and most robust 4-wheel forestry tractor in the EQUUS range. Powered by an enhanced 6-cylinder engine, it delivers exceptional traction and towing power for operators who require additional performance, while maintaining the maneuverability and efficiency of a compact 4-wheel machine.

16 t

WINCH PULLING FORCE

280 hp

ENGINE POWER

9,1 m

CRANE REACH

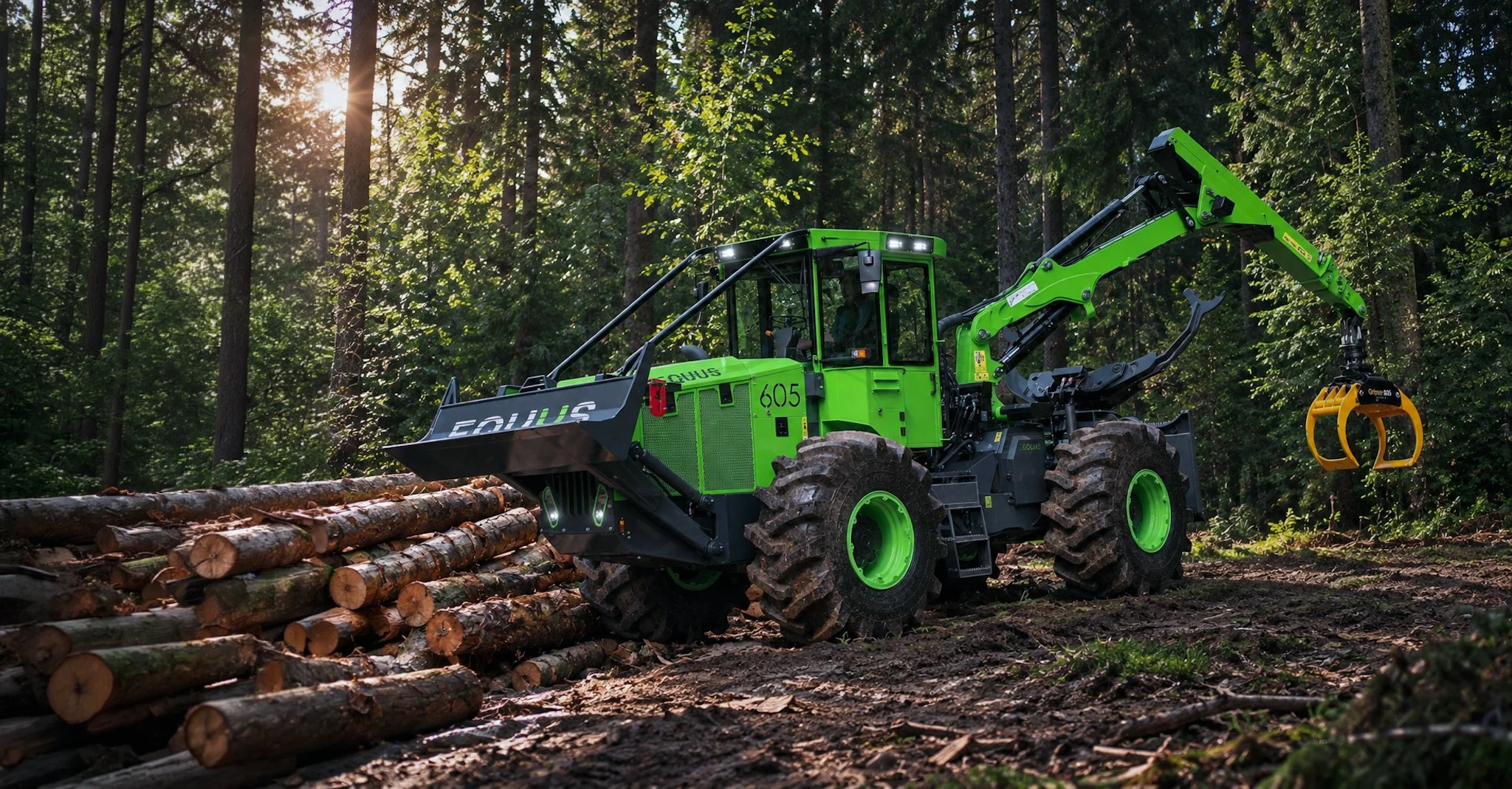

BUILT FOR HEAVY DUTY

The EQUUS 605 shares the same proven design, dimensions and working capabilities as the EQUUS 240.

The key difference is under the hood: the 605 UN is powered by a more powerful 6-cylinder CUMMINS B6.7 Stage V engine, delivering increased power and torque for the most demanding forestry operations.

16 TONNES OF PULLING POWER

The machine combines exceptional traction and towing power with the maneuverability and terrain accessibility of a 4-wheel tractor.

It is equipped with a proven winch delivering up to 16 tonnes of pulling force and a heavy-duty hydraulic crane designed for both timber handling and dragging logs in challenging terrain.

BIG & STRONG MACHINE.

With its robust construction, high towing capacity and powerful 6-cylinder engine, the EQUUS 605 is designed for operators who require additional engine performance while retaining the proven capabilities and agility of the EQUUS 240 platform.

Key features

BUILT TO LAST.

EQUUS forestry tractors are engineered for long service life, reliability and efficient operation. The frame is manufactured from high-strength steel, combining exceptional durability with a low machine weight and efficient fuel consumption.

The cabin is designed to meet demanding ROPS, FOPS and OPS safety requirements, while oversized axles from a renowned German manufacturer NAF provide additional capacity for heavy loads.

A proprietary hydrostatic transmission and cooling system ensure consistent performance even under demanding operating conditions. We use proven components from established suppliers to ensure reliability throughout the machine's service life.

EASY TO SERVICE.

EQUUS tractors are designed with simplicity, reliability and easy maintenance in mind. By avoiding unnecessary complexity and using proven components, we make diagnostics, servicing and repairs faster and more cost-effective.

Engine and hydrostatic system diagnostics enable quick and accurate fault identification, while standardized hydraulic cylinders simplify replacement and reduce maintenance costs.

Major components, including the engine, working hydraulics and drivetrain, are positioned within the frame for easy access and efficient servicing. Combined with dedicated technical support and favorable warranty and post-warranty service conditions, this helps minimise downtime and operating costs.

Configurations

  • EQUUS 605BH

    Wheelbase:
    3590 | 3740 mm
    Engine:
    CUMMINS B6.7 Stage V
    210 kW | 280 HP @ 1,900 rpm | 1288 Nm @ 1,500 rpm



    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

  • EQUUS 605UN

    Wheelbase:
    3590 | 3740 mm
    Engine:
    CUMMINS B6.7 Stage V
    210 kW | 280 HP @ 1,900 rpm | 1288 Nm @ 1,500 rpm

    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

    ☑️ Hydraulic crane

    ☑️ Clambunk

  • EQUUS 605UH

    Wheelbase:
    3590 | 3740 mm
    Engine:
    CUMMINS B6.7 Stage V
    210 kW | 280 HP @ 1,900 rpm | 1288 Nm @ 1,500 rpm

    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

    ☑️ Hydraulic crane

    ☑️ Clambunk

    ☑️ Harvester head

  • EQUUS 605AF

    Wheelbase:
    3590 | 3740 mm
    Engine:
    CUMMINS B6.7 Stage V
    210 kW | 280 HP @ 1,900 rpm | 1288 Nm @ 1,500 rpm

    ☑️ Twin-drum winch

    ☑️ Front blade

    ☑️ Rear shield

    ☑️ Hydraulic crane

    ☑️ Clambunk

    ☑️. Additional PTO and pre-installed connections for customer-selected attachments

Full Technical Specifications

  • The CUMMINS B6.7 Stage V is engineered to deliver high torque at lower, fuel-efficient engine speeds, providing strong pulling power exactly where demanding forestry work requires it. Its Cummins-designed turbocharger delivers rapid engine response and high performance, helping achieve faster working cycles.

    More power does not have to mean higher fuel consumption. The engine's efficient design helps deliver higher performance with excellent fuel economy, while the EGR-free architecture reduces system complexity, improves reliability and lowers cooling system requirements.

    CUMMINS B6.7 STAGE V

    • Engine: 6-cylinder

    • Max. power: 172 kW (230 hp) @ 2,000 rpm

    • Optional: 210 kW (280 hp) @ 1,900 rpm

    • Max. torque: 1,044 Nm @ 1,500 rpm

    • Optional: 1,288 Nm @ 1,500 rpm

    • Fuel tank: 210 l

    • AdBlue tank: 37 l

    • Cooling fan: Fan Drive

    More torque. More power. Lower engine speeds.

  • The front and rear frames are fully welded from S690QL high-strength steel, providing exceptional structural rigidity, durability and long service life.

    The tractor consists of two independent frames connected by vertical articulation pins and an axial bearing. The articulation system allows 45° frame articulation and 15° oscillation, enabling the machine to follow uneven terrain while maintaining stability and traction.

    Two hydraulic cylinders provide frame locking, allowing the articulation to be securely locked when required.

  • The Load Sensing hydraulic system is powered by an axial piston pump with a displacement of 165 cm³/rev., delivering up to 264 l/min at 1,600 rpm.

    The system uses high-quality Danfoss hydraulic components and Parker hydraulic hoses with ORFS fittings, ensuring high reliability, durability and easy system accessibility.

    HYDRAULIC SPECIFICATIONS

    System: Load Sensing
    Pump: Axial piston pump
    Displacement: 165 cm³/rev.
    Maximum flow: 264 l/min @ 1,600 rpm
    Hydraulic tank capacity: 65 l
    Working pressure: 230 / 350 bar
    Hydraulic components: Danfoss
    Hydraulic hoses: Parker with ORFS fittings

  • EQUUS hydraulic cranes are developed and manufactured in-house for demanding forestry operations. Their robust construction is designed for both timber handling and extraction, with a focus on durability, easy maintenance and reliable long-term performance.

    Available with 7.5, 8.2 and 9.1 m reach and lifting moments of 120 or 140 kNm, the double-telescopic cranes can be configured to match different applications and operator requirements.

    KEY FEATURES

    DOUBLE TELESCOPIC DESIGN
    7.5, 8.2 and 9.1 m reach options for flexible timber handling.

    HEAVY-DUTY CONSTRUCTION
    Robust components designed to withstand demanding forestry operations, including timber extraction.

    PRECISE CONTROL
    Individually adjustable functions, including movement speed, acceleration and deceleration ramps and joystick sensitivity.

    BUILT FOR SERVICEABILITY
    Designed with long service life, straightforward maintenance and easy servicing in mind.

    VERSATILE CONFIGURATION
    Different rotation angles, attachments and configurations allow the crane to be tailored to specific applications.

    COMPLETE GRAPPLE SYSTEM
    Supplied with rotator, suspension and Gripen 035 grapple, with alternative grapple and double-brake suspension options available.

  • The folding rear shield is manufactured from high-strength material and designed for demanding forestry operations. Its upper edge can be equipped with choker attachment points or a curved, toothed surface for secure timber support.

    The rear shield features heavy-duty spherical rope pulleys. An optional configuration includes an independently lifting shield that raises the pulleys up to 2 m, improving cable routing and winching performance.

    When raised, the lower edge of the shield maintains excellent ground clearance and a generous approach angle, allowing the tractor to reverse safely and efficiently on steep slopes.

    Standard shield width: 2,400 mm

    REAR SHIELD OPTIONS

    • Standard folding rear shield

    • Rear shield with independently height-adjustable pulley section

  • The EQUUS hydraulic clambunk is an in-house designed attachment for the rear shield. Hydraulically operated jaws securely hold timber during chokerless skidding, serving as an integrated load carrier.

    The clambunk features an automatic jaw pressure function as standard, continuously maintaining a firm grip on the timber during skidding.

    Available with a 0.8 m² or 1.2 m² loading area, in either a fixed or quick-release configuration for fast attachment and removal.

  • The EQUUS hydro-mechanical transmission combines a high-displacement single hydraulic motor with 45° swash-plate technology, delivering high efficiency and economical operation during demanding forestry work.

    The hydrostatic drive provides strong dynamic braking, reducing the need to use the service brakes during operation.

    The system is complemented by a NAF two-speed mechanical transfer gearbox with selectable rear-axle disengagement, allowing 4×4 / 4×2 operation and efficient road transport.

    The EQUUS hydrostatic transmission delivers demonstrably higher efficiency at speeds up to 18 km/h compared with competing two-motor hydrostatic systems.

  • The front and rear axles are fixed NAF planetary axles, engineered for demanding forestry applications.

    Both axles feature 100% mechanical differential locks, with separate locking of the front and rear differentials for maximum traction in challenging terrain.

    Proven by extensive field experience, NAF axles are recognised for their exceptional durability, reliability and performance in this power class.

  • The EQUUS in-house manufactured safety cabin is designed to provide maximum operator protection. Unlike conventional solutions, EQUUS cabins are tested in the T1a category, requiring up to 75% more demanding ROPS, FOPS and OPS testing conditions.

    The sound-insulated, forward-tilting cabin provides easy access to service components from both sides of the tractor. Tinted safety glass with 20% solar reflection reduces glare and improves operator comfort.

    An ergonomic layout, excellent all-round visibility, low entry height and doors on both sides ensure comfortable and efficient operation without compromising the tractor's ground clearance.

    Standard equipment includes Webasto heating and air conditioning, interior lighting, Bluetooth hands-free radio and a mechanically suspended seat. An air-suspended seat with heating, ventilation and adjustable lumbar support is available as an option.

    The 315° electrically rotating operator station, with braking in every position and integrated accelerator and brake pedals, provides excellent visibility and precise control in all working positions.

  • EQUUS 2BN WINCH

    The EQUUS 2BN twin-drum winch is manufactured in-house and features a spur-gear transmission integrated into the gearbox, providing high efficiency, durability and reliability in demanding forestry applications.

    Its robust and simple design, combined with high-quality materials, ensures long service life with minimal maintenance requirements. The winch is powered by a Danfoss variable-displacement hydraulic motor, which automatically adjusts its output to optimise pulling performance and operating efficiency.

    WINCH SPECIFICATIONS

    Type
    Twin-drum winch with spur-gear transmission integrated into the gearbox

    Pulling force
    2 × 12 t, up to 16 t

    Winding speed
    Two-speed, up to 2.4 m/s

    Drum capacity
    2 × 120 m or 2 × 150 m

    Cable diameter
    Ø14 mm

    OPTIONAL EQUIPMENT

    Hydraulic cable pay-out uses hydraulic motors to drive rollers that smoothly feed the cable from the drums, making the handling of heavy steel cable significantly easier.

    The optional HAFO auxiliary winch uses a lightweight nylon rope to pull the main steel cable towards the timber. The nylon rope can have a total length of up to 350 m.

    Additional functions include soft-start winding, controlled winding run-out and adjustable winding and unwinding speed.

    A cable pressure roller can also be integrated into the winch drum. It guides the cable into regular layers during winding, helping to reduce cable wear and extend its service life.

  • The folding front blade features a reinforced lower edge and integrated anti-rollover teeth to prevent logs from rolling over. Its high lifting range provides a generous approach angle, offering a significant advantage when descending steep slopes.

    Several blade types and widths are available. Optional equipment includes toolboxes, timber-gripping tines and increased lifting capacity up to 6 tonnes.

    A special grading blade is also available on request. It can be hydraulically tilted around its horizontal axis using two hydraulic cylinders, allowing the blade angle to be adapted to the terrain.

    The front blade is equipped as standard with a chainsaw holder.

    Standard blade width: 2,200 mm

    FRONT BLADE OPTIONS

    • Folding forestry blade

    • Grading blade

    • Different blade widths and configurations

  • The HBC remote control is a practical and intuitive solution, particularly suited to demanding forestry operations.

    It provides remote access to all winch functions, rear shield operation, engine speed control and engine START/STOP, allowing the operator to control the tractor and winch functions safely and efficiently from outside the cabin.
